DIAG 7 and TH-3001 form a flexible and high-performance measurement and diagnostic system for your industrial applications.
Precise and fast measurement of flow, pressure, and temperature values thanks to automatic sensor detection.
Bluetooth® interface for visualization and CSV export of measurement data on Android devices.
All-in-one measurement
Flow, temperature, pressure and differential pressure in one compact system
High-precision measurements
16-bit resolution with automatic visualization of average values
Intuitive operation
Automatic sensor detection Straightforward menu navigation Clear display of values and units
Communication
Bluetooth® interface for Android devices

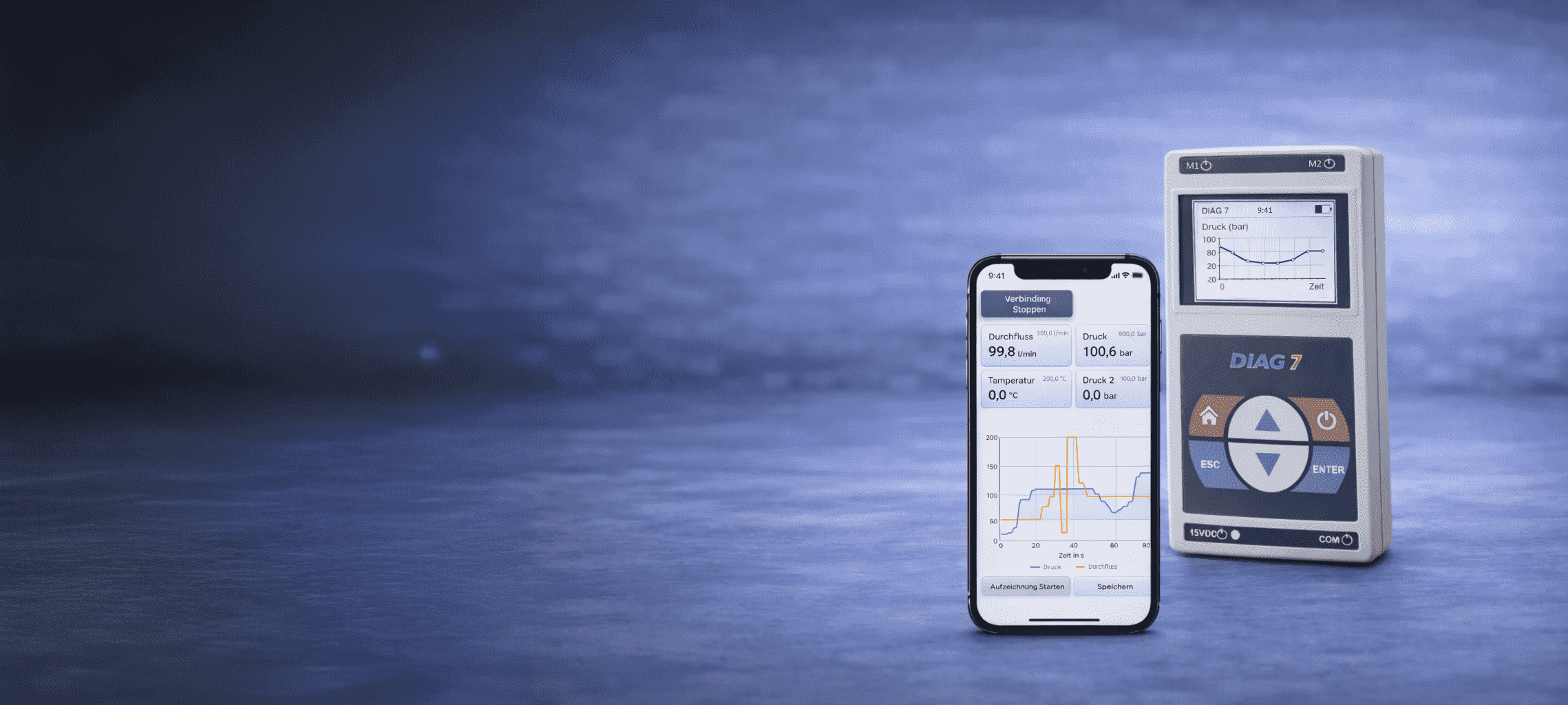

HANDHELD MEASURING DEVICE
DistaDIAG 7 impresses with its intuitive operation, intelligent functions and flexible data evaluation. A versatile measuring device that can also be used in customer-specific applications.
Some features of the DIAG 7 are:
Simultaneous recording of 4 measurement channels
Automatic sensor detection
Clear graphical display of measured values
Automatic calculation of average values
Recording of minimum and maximum values
Bluetooth® interface for Android smartphones and tablets
Measurement data export in CSV format from the DistaDIAG app
SENSOR MODULE TH-3001
The TH series turbine flow meters feature a robust aluminum housing and corrosion-resistant stainless steel ball bearings, ensuring reliable performance in demanding industrial environments. They are designed for measuring liquids with low to medium viscosity, such as lubricating media, glycol mixtures, and oils.
Thanks to integrated additional ports, the TH series enables the simultaneous measurement of flow, pressure, and temperature, making it a compact and efficient solution for service operations, system diagnostics, and commissioning.
TECHNICAL DATA
DistaDIAG 7
| Number of channels | 4 (flow, pressure, pressure, temperature) |
| Channel 1 accuracy* | Frequency ±0.05% of FS |
| Channels 2 & 3 accuracy* | Pressure ±0.01% of FS |
| Channel 4 accuracy* | Temperature ±0.01% of FS |
| Display | TFT color display (68 × 68 mm) |
| Power supply | 15 V DC |
| Power source | Integrated 16,000 mAh rechargeable battery |
| Battery life | Up to 8 hours |
| Interfaces | Bluetooth®, USB-C |
| Operating temperature | 0…40 °C |
| Storage temperature | −10…50 °C |
TH-3001
| Medium | Glycol mixtures, oils, and other fluids |
| Max operating pressure | 400 bar |
| Flow measurement range | 15 … 300 l/min |
| Medium temperature range | 0 … 110 °C |
| Connection | 1 1/4‘‘ |
| Measurement accuracy | ± 1.5 % of full scale (FS) |
| Calibrated at | 32 mm²/s viscosity, 3 calibration points |
*Without the sensor.
